Universal Projector Ceiling Mount
The adjustable ceiling bracket that holds a projector square to the screen and lets you fine-tune the alignment once it's up there.
- Universal
- install available
Product photoManufacturer product photograph — this is the item that ships.
Straight answer
For a room you can darken
A 1.3-gain white surface rewards a dark room. In a bright living room with big windows, a large TV will beat this every time — we'd rather tell you that now.
Measure the wall before you pick a size
A 150" screen is over 3.3 meters wide. The frame needs that much clear wall with nothing either side of it, and the room needs enough depth for the throw.
It's permanent
Fixed frame means fixed. If you need the wall back when the film ends, you want a retractable screen instead of this one.

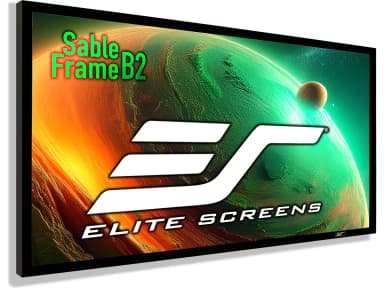

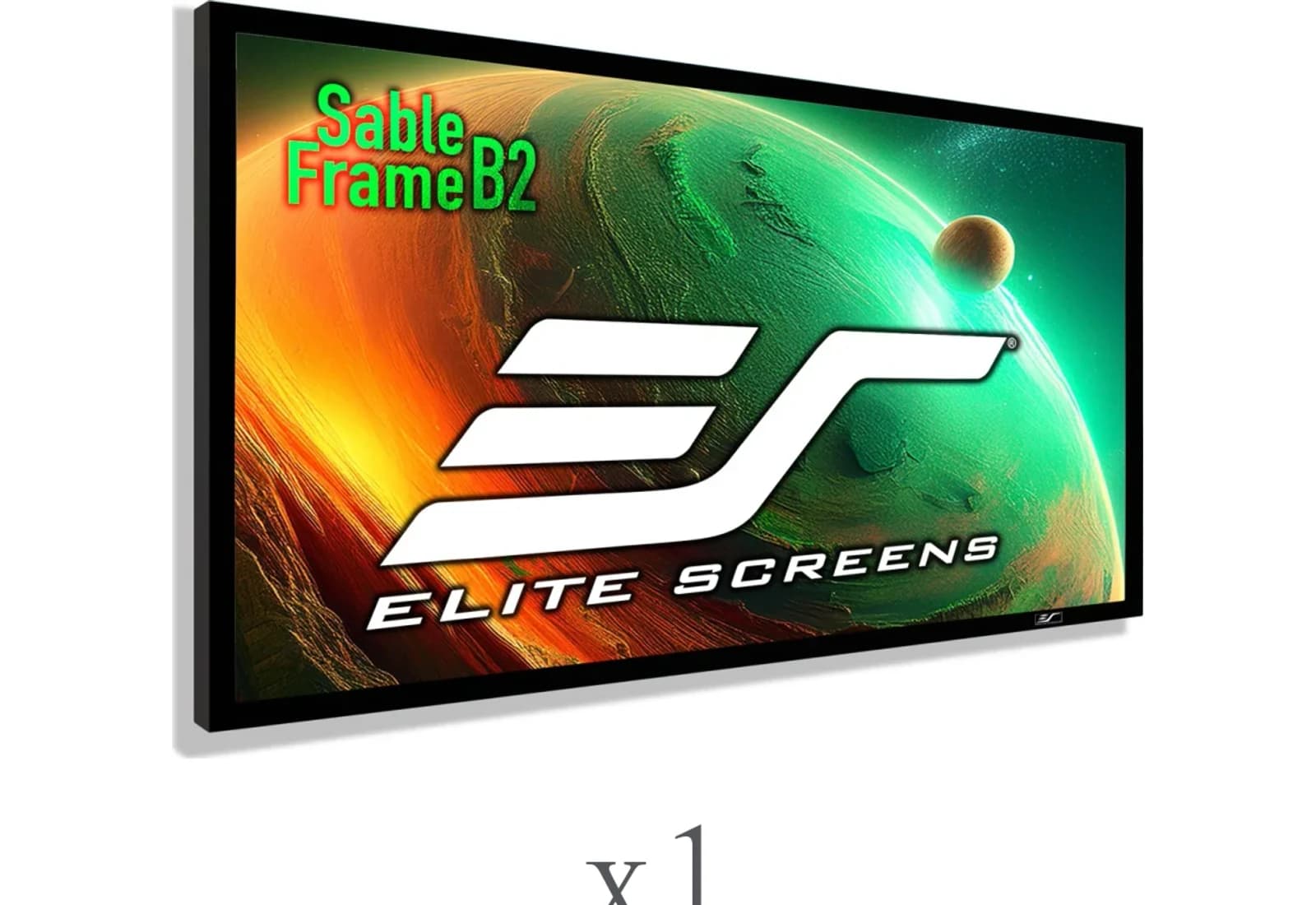

A fixed-frame screen is stretched over an aluminum frame and left there, so the surface stays perfectly flat instead of rippling like a pull-down does. The frame is wrapped in black velvet that soaks up the light spilling past the edge of the image, which is what makes the picture edges look sharp. The CineWhite UHD-B surface is ISF-certified at 1.3 gain and works with ultra-short-throw, short-throw and standard projectors alike.
Assembly is a two-person job and tensioning the surface evenly takes patience — an uneven pull shows up as a wave right across the picture. Pair that with getting the projector square to the frame and it's one worth handing over.
| Type | Fixed-frame, wall-mounted, front projection |
|---|---|
| Image & optics | |
| Aspect ratio | 16:9 |
| Gain | 1.3 |
| Viewing angle | 180° |
| Resolution support | 4K / 8K UHD, HDR and active 3D ready |
| Overall size | 100": 2214 × 1245 mm · 120": 2656 × 1493 mm · 135": 2990 × 1681 mm · 150": 3322 × 1869 mm (16:9 viewing area) |
| Physical | |
| Material | CineWhite UHD-B |
| Frame | 2.75" aluminum, wrapped in black velvet |
| Depth off wall | 1.5" |
| Weight | Approx. 35 lb (120", 135", 150") |
| Compliance & support | |
| Certification | ISF certified |
| Connections & control | |
| Projector compatibility | Ultra-short-throw, short-throw and standard throw |
| Tensioning | Spring tensioned for a flat surface |
Specifications sourced from the manufacturer’s published data (datasheet).
A box on its own is rarely the whole job. Here’s the honest rest of what makes it work — the integrator’s value, stated plainly.
These kits are built around this product, so the recorder, the cameras and the capacity are already matched to each other.
Warranty
2-year limited warranty from Elite Screens; 3 years for education, non-profit, religious and government/military buyers under their ENR-G program The warranty period begins on the date you receive the product. Our workmanship guarantee covers any installation we perform. Full terms on our Warranty page.
Shipping
Hardware ships to your door and shipping is calculated at checkout; installation, if you add it, is scheduled separately after a walkthrough. See Shipping & returns.
Returns
Unopened, unused hardware can be returned within 30 days of delivery in its original packaging, with a return authorization. Opened but undamaged hardware is subject to a 15% restocking fee. See Shipping & returns for the full policy.
By card, online, through Stripe. You enter your card on Stripe's own secure page — your card number never reaches our site. We don't offer cash on delivery.
Orders delivered to a Texas address are charged Texas sales tax at 8.25% — the 6.25% state rate plus 2% local — on the hardware subtotal plus shipping, because Texas taxes the delivery charge on taxable goods. Tax is shown as its own line before you pay. Orders delivered outside Texas aren't charged Texas sales tax.
We ship to all 50 states and DC, from Dallas–Fort Worth. You pay the shipping at the carrier's live rate: at checkout we compare UPS, FedEx and USPS for your cart and address and show the cheapest carrier for each speed. There's no flat table and no free-shipping threshold, and the price you see is the price you pay.
Dispatch is normally 1–3 business days. Then it's the carrier's transit time for the speed you choose: Standard is 3–5 business days, Express 2 business days, Overnight the next business day. A speed only appears if a carrier will actually do it for your address, and you get a tracking link by email the moment the label is bought.
Every shipment worth more than $500 is insured automatically for its value. It isn't an extra you tick — the insurance fee is already included in the shipping rate you see at checkout.
A projection screen travels flat and long, and a parcel carrier's handling is what damages them. So every screen — and the two kits that include one, the Projection Starter and the Media Room Package — ships by freight, never as a parcel. Within 80 miles of Dallas–Fort Worth we deliver it with installation; anywhere else, checkout offers a "Request a freight quote" form with your cart and address filled in, and we come back with a delivered price.
Yes — every kit is 10% off the total of its parts. The saving shows on the kit page, in the cart and at checkout, and it applies while every part of the kit is in your cart. Discount codes don't apply to kits, since they already carry the kit saving.
We contact you. You choose between an equivalent alternative at the original price or a full refund for that item — we never substitute without asking.
Because it usually isn't the same camera. The housing can be identical while the sensor, lens, low-light behavior, and firmware support are not. We choose equipment we can stand behind for years and service locally, and we'll always tell you plainly what the cheaper look-alike gives up.
Happy to. Bring the cameras, recorder, speakers, or gear you already own — if it's standards-compatible and in good shape, we'll design around it and install it properly. We'll tell you plainly at the walkthrough if a specific piece is holding the system back, but there's no obligation to buy your hardware from us.
Yes. Anything in the shop is real hardware you can buy and take delivery of on its own — a single camera, a recorder, a drive, a speaker, a full kit. Professional installation is an option you add only if you want it, never forced.
Absolutely. Everything in the shop is yours to install. Each product page gives an honest read on how hard the self-install actually is, and where having us do it is worth it — usually hidden cable, overlapping camera coverage, or anything going inside walls.
Yes. A new recorder with the cameras you already have, or new speakers on your existing wiring, is a common job. We check compatibility at the walkthrough so the parts actually work together.
No. Walkthroughs are free and carry no obligation, whether you end up buying hardware from us, bringing your own, or deciding not to go ahead.
Installation isn't charged today. Aji quotes it after a free walkthrough. Adding it is a request, not a purchase — you pay for the hardware at checkout and nothing for installation until you've approved Aji's quote.
