Straight answer

Is this right for me?

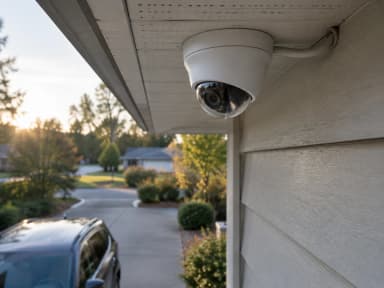

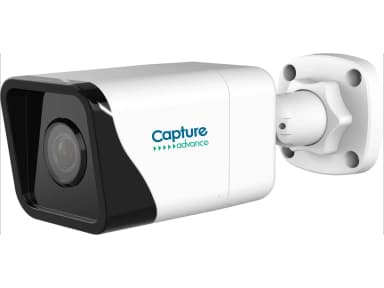

  • Bullet outside, dome where people can reach

    Bullets are visible and obviously pointed somewhere, which deters. Domes are discreet and, at IK10, take a hit — the right call at head height or in a corridor.

  • 8MP is not automatically better

    The 8MP has a wider horizontal view but a NARROWER vertical one than the 5MP. For a driveway you want the 5MP's taller frame; for a wide forecourt, the 8MP.

  • A 2.8mm lens is wide, not far

    Excellent for covering a whole driveway or a room. If you need to read a plate at forty meters, this is the wrong lens and we'd tell you so.

  • NDAA compliant

    Sold as compliant, so these can go on schools, municipal buildings and federally funded property that most consumer cameras are barred from.

Overview

These run on a single Cat6 run back to the recorder, drawing power over the same cable. True WDR handles the hard shots — a doorway with bright sky behind it, a garage opening onto sunlight — where a cheaper camera gives you a silhouette. Infrared reaches about 98 feet in the dark, and the metal housings are IP67 rated, with the domes adding IK10 impact resistance for anywhere within reach.

Do I need professional installation for this?

Mounting a camera is easy. Deciding WHERE is the entire job — height, angle, what's behind it at sunrise, whether two cameras overlap so one catches the plate and the other the face. That's what a walkthrough is for, and it's the difference between footage that identifies someone and footage that just proves something happened.

Specifications

Wide dynamic rangeTrue WDR
Day/nightAuto (ICR)
Signal-to-noise ratio55dB
Streams3 simultaneous, CBR/VBR, 25/30fps
Image enhancementHLC, BLC, defog, WDR, 2D/3D DNR
Smart functionsFace, human and vehicle detection · perimeter, virtual fence, loitering, people counting
Onboard storageMicro SD slot, up to 256GB
Audio1 channel in / 1 channel out (G.711, raw PCM)
Alarm1 channel in / 1 channel out
InteroperabilityONVIF, SDK, CGI
Image & optics
Sensor1/2.8" progressive scan CMOS
Resolution5MP (2560×1920) or 8MP (3840×2160) depending on model
Lens2.8mm fixed focus, fixed iris (4mm optional)
ApertureF2.0
Angle of view5MP: 93.4° H / 69.1° V · 8MP: 97.4° H / 52.5° V
IR rangeUp to 30m (98ft), auto/manual, Smart IR
Minimum illuminationColor: 0.03 lux (F1.6, AGC on) · B/W: 0 lux with IR on
Connections & control
Network1 × RJ-45 10/100 Base-T
Power & environment
PowerPoE (IEEE 802.3af) or DC12V · max 8.5W (bullet), 5.5W (dome)
Ingress protectionBullet: IP67 · Dome: IP67 and IK10 impact rated
Operating temperature−40°C to 55°C (−40°F to 131°F)
Physical
HousingMetal
DimensionsBullet: 7.39" × 2.52" × 2.52" · Dome: 4.33" × 3.36"
WeightBullet: 1.32 lb · Dome: 1.04 lb
Compliance & support
CertificationsCE / FCC
ComplianceNDAA compliant (manufacturer-stated)

Specifications sourced from the manufacturer’s published data.

What you'll also need

A box on its own is rarely the whole job. Here’s the honest rest of what makes it work — the integrator’s value, stated plainly.

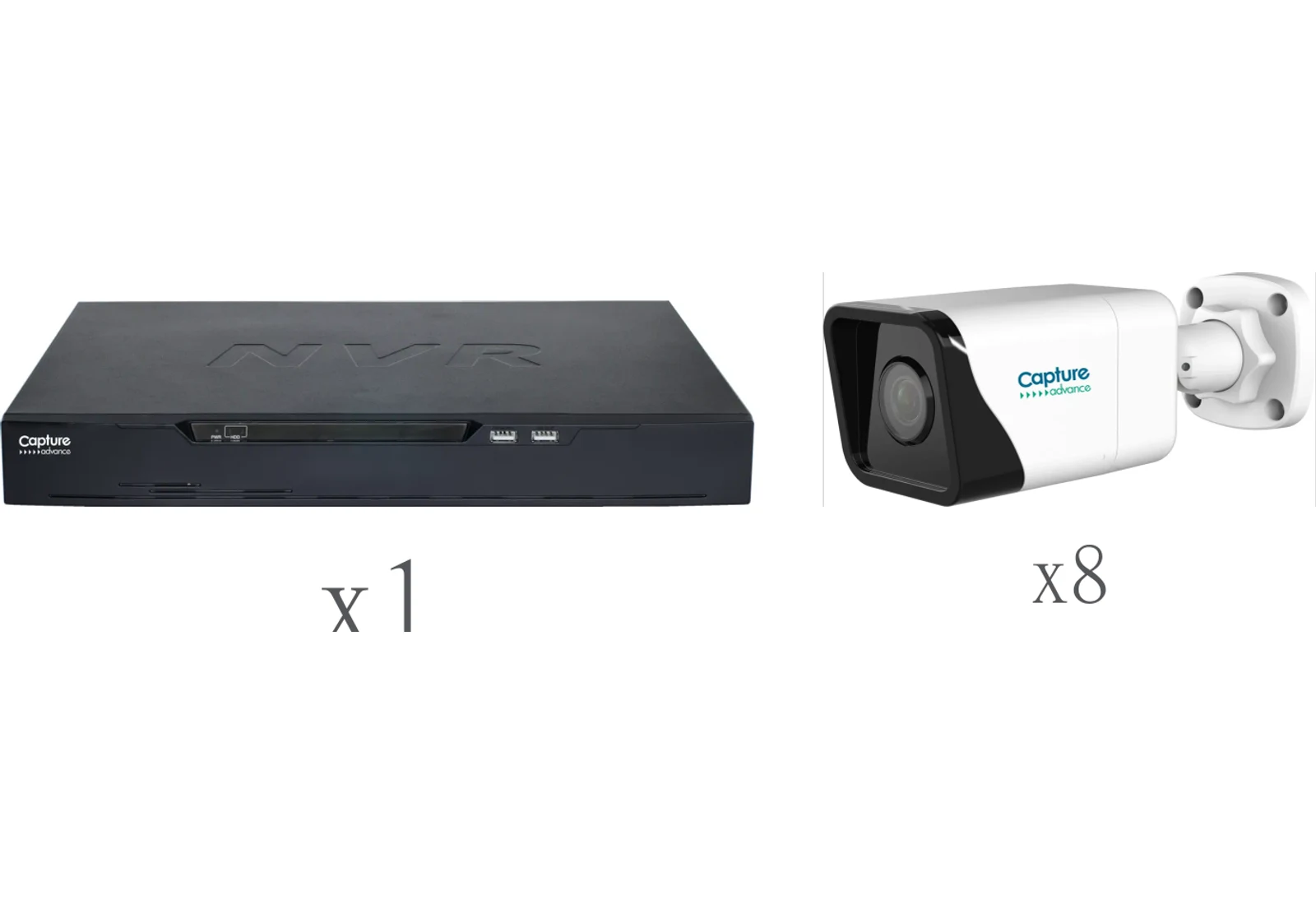

  • Capture Advance

    Network Video Recorder (NVR)

    The box that powers your IP cameras over their network cable and keeps the footage — so there's something to look back at weeks later.

    • 8MP
    • 4CH–16CH
    • install available
    from $525.99Details
Left and right arrow keys scroll between 1 products. Home and End jump to either end.Showing group 1 of 1
  • Cat6 cable from the recorder to each camera position
  • A PoE switch if you have more cameras than the recorder has ports

Warranty & returns

Warranty

36-month warranty The warranty period begins on the date you receive the product. Our workmanship guarantee covers any installation we perform. Full terms on our Warranty page.

Shipping

Hardware ships to your door and shipping is calculated at checkout; installation, if you add it, is scheduled separately after a walkthrough. See Shipping & returns.

Returns

Unopened, unused hardware can be returned within 30 days of delivery in its original packaging, with a return authorization. Opened but undamaged hardware is subject to a 15% restocking fee. See Shipping & returns for the full policy.

What's in the box

  • Camera
  • Mounting bracket and fixings
  • Quick setup guide

FAQ

How do I pay?

By card, online, through Stripe. You enter your card on Stripe's own secure page — your card number never reaches our site. We don't offer cash on delivery.

Do you charge sales tax?

Orders delivered to a Texas address are charged Texas sales tax at 8.25% — the 6.25% state rate plus 2% local — on the hardware subtotal plus shipping, because Texas taxes the delivery charge on taxable goods. Tax is shown as its own line before you pay. Orders delivered outside Texas aren't charged Texas sales tax.

Where do you ship, and what does shipping cost?

We ship to all 50 states and DC, from Dallas–Fort Worth. You pay the shipping at the carrier's live rate: at checkout we compare UPS, FedEx and USPS for your cart and address and show the cheapest carrier for each speed. There's no flat table and no free-shipping threshold, and the price you see is the price you pay.

How long will delivery take?

Dispatch is normally 1–3 business days. Then it's the carrier's transit time for the speed you choose: Standard is 3–5 business days, Express 2 business days, Overnight the next business day. A speed only appears if a carrier will actually do it for your address, and you get a tracking link by email the moment the label is bought.

Is my shipment insured?

Every shipment worth more than $500 is insured automatically for its value. It isn't an extra you tick — the insurance fee is already included in the shipping rate you see at checkout.

Why do projection screens ship by freight?

A projection screen travels flat and long, and a parcel carrier's handling is what damages them. So every screen — and the two kits that include one, the Projection Starter and the Media Room Package — ships by freight, never as a parcel. Within 80 miles of Dallas–Fort Worth we deliver it with installation; anywhere else, checkout offers a "Request a freight quote" form with your cart and address filled in, and we come back with a delivered price.

Do kits cost less than buying the parts separately?

Yes — every kit is 10% off the total of its parts. The saving shows on the kit page, in the cart and at checkout, and it applies while every part of the kit is in your cart. Discount codes don't apply to kits, since they already carry the kit saving.

What happens if something I ordered is out of stock?

We contact you. You choose between an equivalent alternative at the original price or a full refund for that item — we never substitute without asking.

Why is your camera more expensive than the same-looking one online?

Because it usually isn't the same camera. The housing can be identical while the sensor, lens, low-light behavior, and firmware support are not. We choose equipment we can stand behind for years and service locally, and we'll always tell you plainly what the cheaper look-alike gives up.

Can I supply my own hardware and have you install it?

Happy to. Bring the cameras, recorder, speakers, or gear you already own — if it's standards-compatible and in good shape, we'll design around it and install it properly. We'll tell you plainly at the walkthrough if a specific piece is holding the system back, but there's no obligation to buy your hardware from us.

Can I buy hardware from you without installation?

Yes. Anything in the shop is real hardware you can buy and take delivery of on its own — a single camera, a recorder, a drive, a speaker, a full kit. Professional installation is an option you add only if you want it, never forced.

Can I install it myself?

Absolutely. Everything in the shop is yours to install. Each product page gives an honest read on how hard the self-install actually is, and where having us do it is worth it — usually hidden cable, overlapping camera coverage, or anything going inside walls.

Can I mix hardware I already own with new hardware from you?

Yes. A new recorder with the cameras you already have, or new speakers on your existing wiring, is a common job. We check compatibility at the walkthrough so the parts actually work together.

Do I have to buy installation to get a walkthrough?

No. Walkthroughs are free and carry no obligation, whether you end up buying hardware from us, bringing your own, or deciding not to go ahead.

If I add installation to an order, what am I charged?

Installation isn't charged today. Aji quotes it after a free walkthrough. Adding it is a request, not a purchase — you pay for the hardware at checkout and nothing for installation until you've approved Aji's quote.
