Straight answer

Is this right for me?

  • You're using IP cameras

    An NVR records network cameras. If your cameras run on coax, you need the DVR instead — the two are not interchangeable.

  • Count your cameras, then add room

    Channels are a hard limit. If you have six cameras now and might add two later, the 8-channel is the cheaper decision than replacing a 4-channel next year.

  • Capacity sets how far back you can look

    More cameras and higher resolution eat the drive faster. 2TB suits a handful of cameras — tell us the days of retention you want and we'll size it properly.

  • NDAA compliant, which opens doors

    Schools, municipal buildings and federally funded properties can't use a lot of the cameras on the market. The 4-channel, the 8-channel with 2TB and both 16-channel models are sold as compliant, so that work stays available to you.

Overview

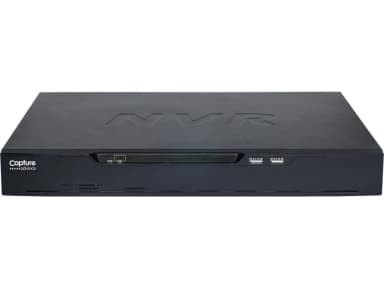

An NVR does two jobs at once: it records every camera continuously, and its built-in PoE ports power those cameras down the same cable that carries the video. That's one cable per camera instead of two, which is most of why an IP system is tidier to install than an analog one. Recording is local, so footage keeps being written even when the internet drops — and the 4-channel, the 8-channel with 2TB and both 16-channel models are sold as NDAA compliant, which matters if you're quoting public-sector work.

Do I need professional installation for this?

Plugging cameras into an NVR is genuinely easy — it's designed to be. The work worth paying for is upstream of that: where the cameras go so their coverage overlaps, cable pulled and terminated properly, and retention actually verified rather than assumed. A system nobody checked is one you find out about after the incident.

Specifications

CompressionH.265
Drive included2TB or 4TB depending on model
Audio I/O1 in / 1 out
Alarm I/O8 in / 1 out (8-channel)
USB3 × USB 2.0
InteroperabilityONVIF, SDK, CGI
Mobile appsiPhone, iPad, Android
Recording & capacity
Camera channels4, 8 or 16 IP channels depending on model
Incoming / outgoing bandwidth4CH: 40 Mbps · 8CH: 56 Mbps · 16CH: 112 Mbps
Drive bays4-channel: 1 × SATA · 8 and 16 channel: 2 × SATA · up to 12TB per drive
Decoding capacity1CH 8MP · 4CH 1080p · 8CH D1 · 16CH D1 @30fps
Connections & control
PoE portsOne per channel, IEEE 802.3af · 128W total budget on the 4, 8 and 16 channel alike
Video outputHDMI up to 3840×2160 · VGA up to 1920×1080
Network1 × RJ-45 10/100/1000 Mbps
Remote users8 concurrent
Image & optics
Max recording resolution8MP
Power & environment
Power supplyAC 100–240V
Power consumption<5W without drive (8-channel)
Operating temperature−10°C to 50°C (14°F to 122°F)
Physical
Dimensions4CH: 10.04" × 9.33" × 1.87" · 8CH and 16CH: 16.65" × 12.2" × 2.2"
Weight (without drive)4CH: 1.98 lb · 8CH: 4.63 lb · 16CH: 6.05 lb
Compliance & support
CertificationsCE / FCC
ComplianceNDAA compliant (manufacturer-stated) — 4CH/2TB, 8CH/2TB, 16CH/2TB and 16CH/4TB

Specifications sourced from the manufacturer’s published data.

What you'll also need

A box on its own is rarely the whole job. Here’s the honest rest of what makes it work — the integrator’s value, stated plainly.

  • Capture Advance

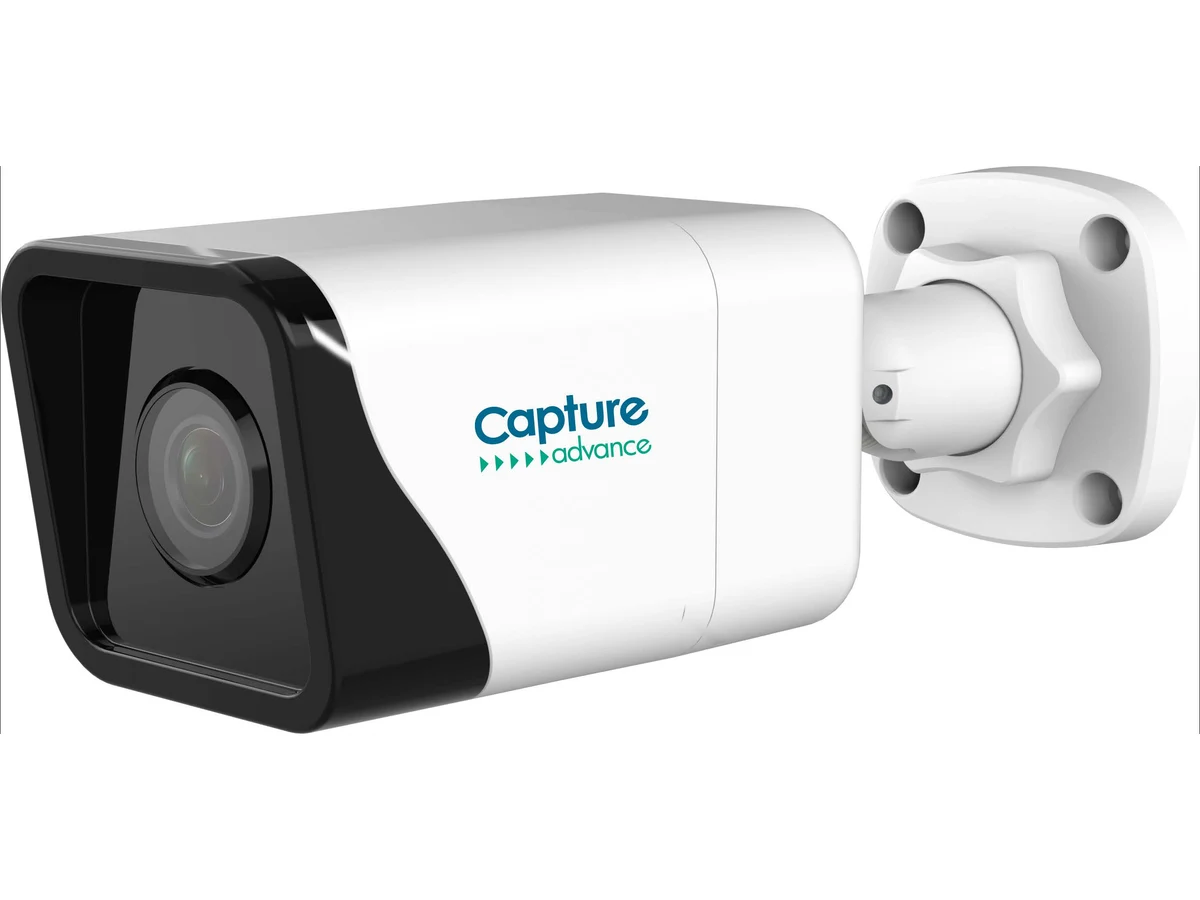

    IP Camera

    A network camera that takes power and sends video down one cable — the resolution to read a plate or recognize a face, not just see that something moved.

    • 5MP–8MP
    • PoE
    • install available
    from $279.99Details
  • Western Digital

    Surveillance Hard Drive

    A drive built to be written to continuously, forever — because a desktop drive in a recorder is a failure with a date on it.

    • 2TB–12TB
    • install available
    from $249.99Details
  • W Box Technologies

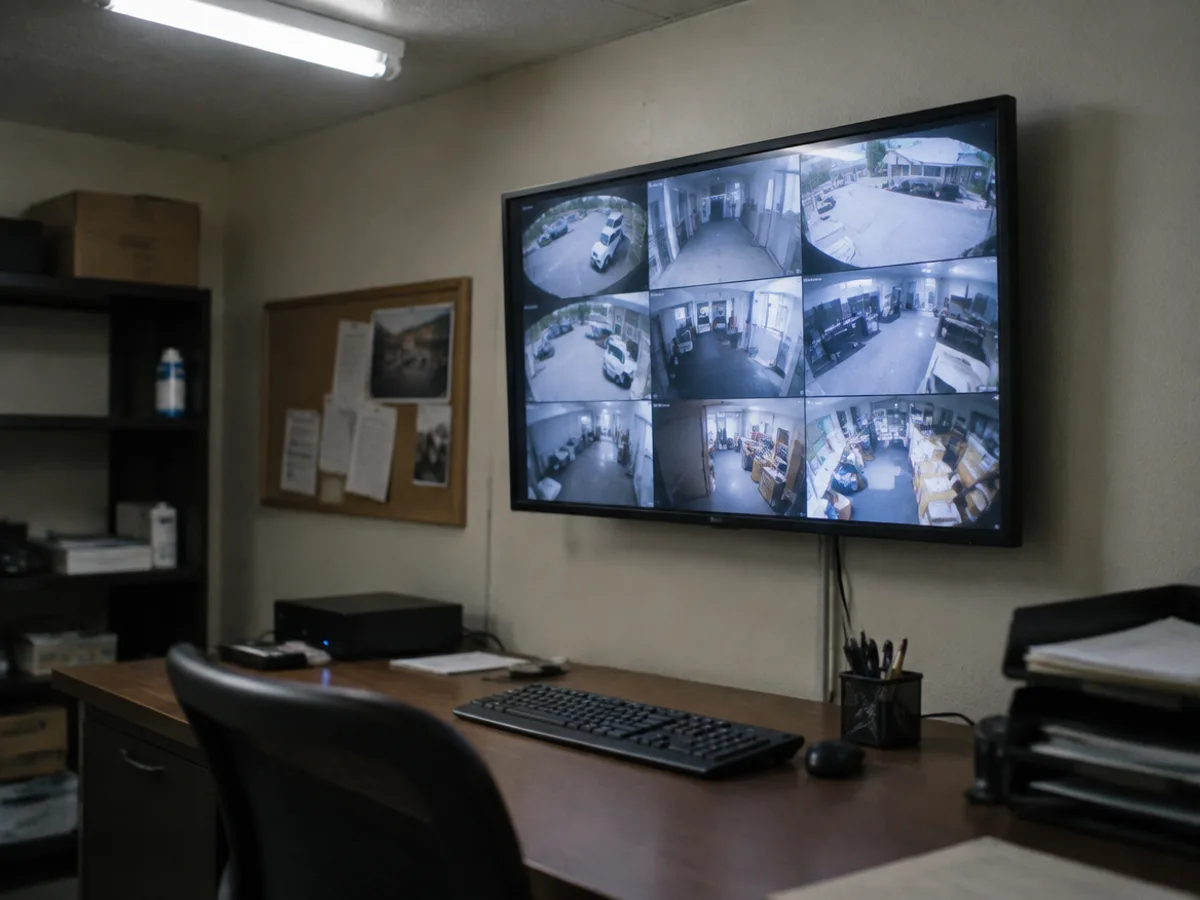

    Professional Monitor

    A screen built to stay on permanently — for a camera wall, a reception display or a back-office monitor that never gets switched off.

    • 1366×768–1920×1080
    • 19"–43"
    • install available
    from $319.99Details
Left and right arrow keys scroll between 3 products. Home and End jump to either end.Showing group 1 of 1
  • Cat6 cable, one run per camera back to the recorder

Warranty & returns

Warranty

36-month warranty The warranty period begins on the date you receive the product. Our workmanship guarantee covers any installation we perform. Full terms on our Warranty page.

Shipping

Hardware ships to your door and shipping is calculated at checkout; installation, if you add it, is scheduled separately after a walkthrough. See Shipping & returns.

Returns

Unopened, unused hardware can be returned within 30 days of delivery in its original packaging, with a return authorization. Opened but undamaged hardware is subject to a 15% restocking fee. See Shipping & returns for the full policy.

What's in the box

  • Recorder, with the hard drive already fitted (2TB or 4TB)
  • USB mouse
  • Power adapter and power cord
  • Six Phillips-head screws (for fitting a second drive)
  • Quick setup guide
